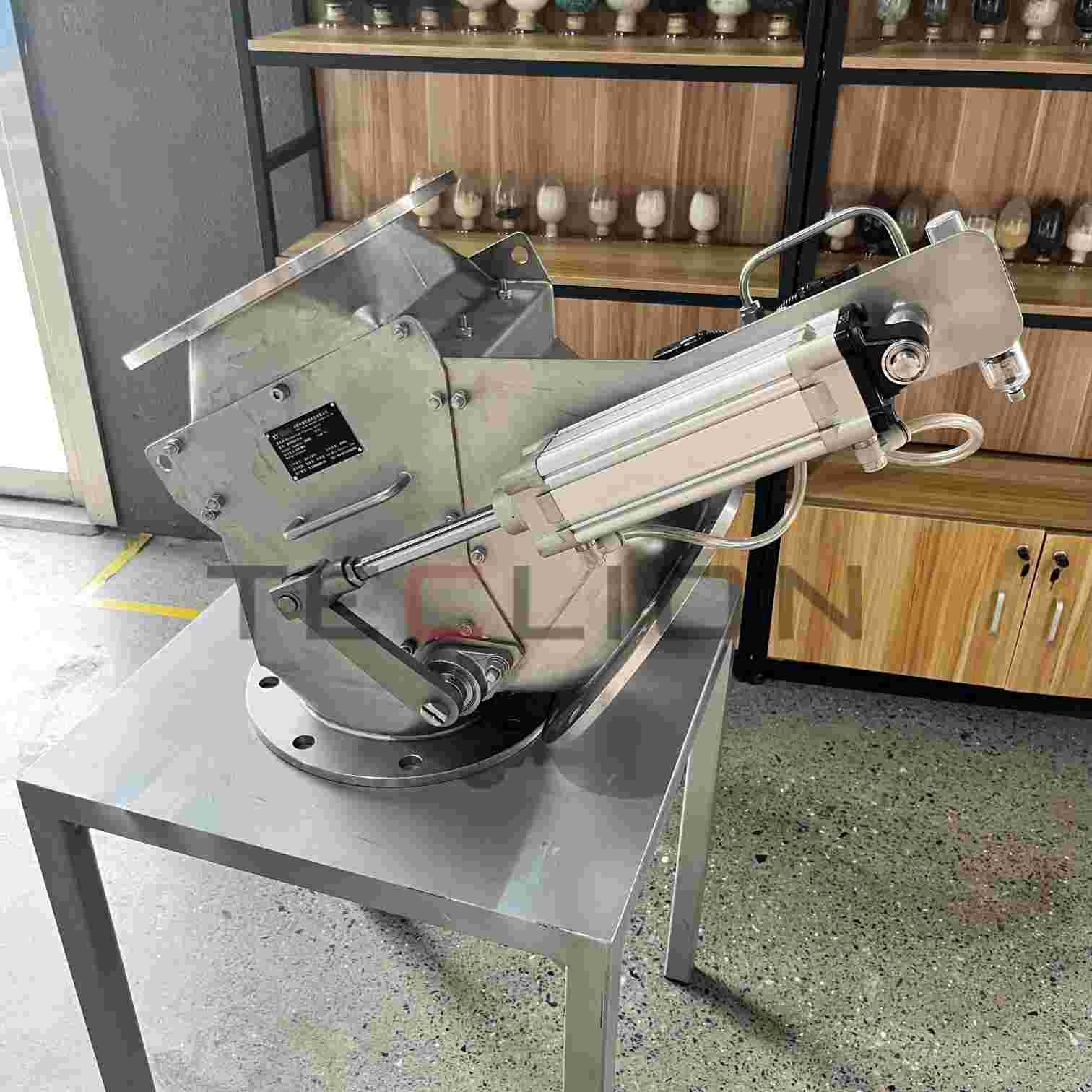

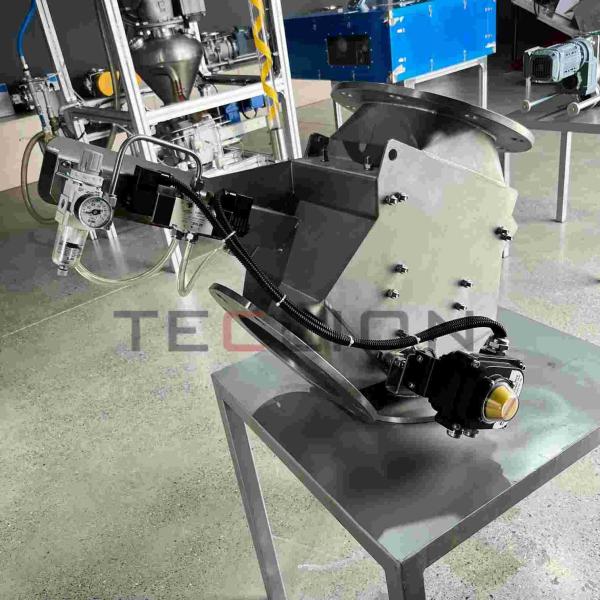

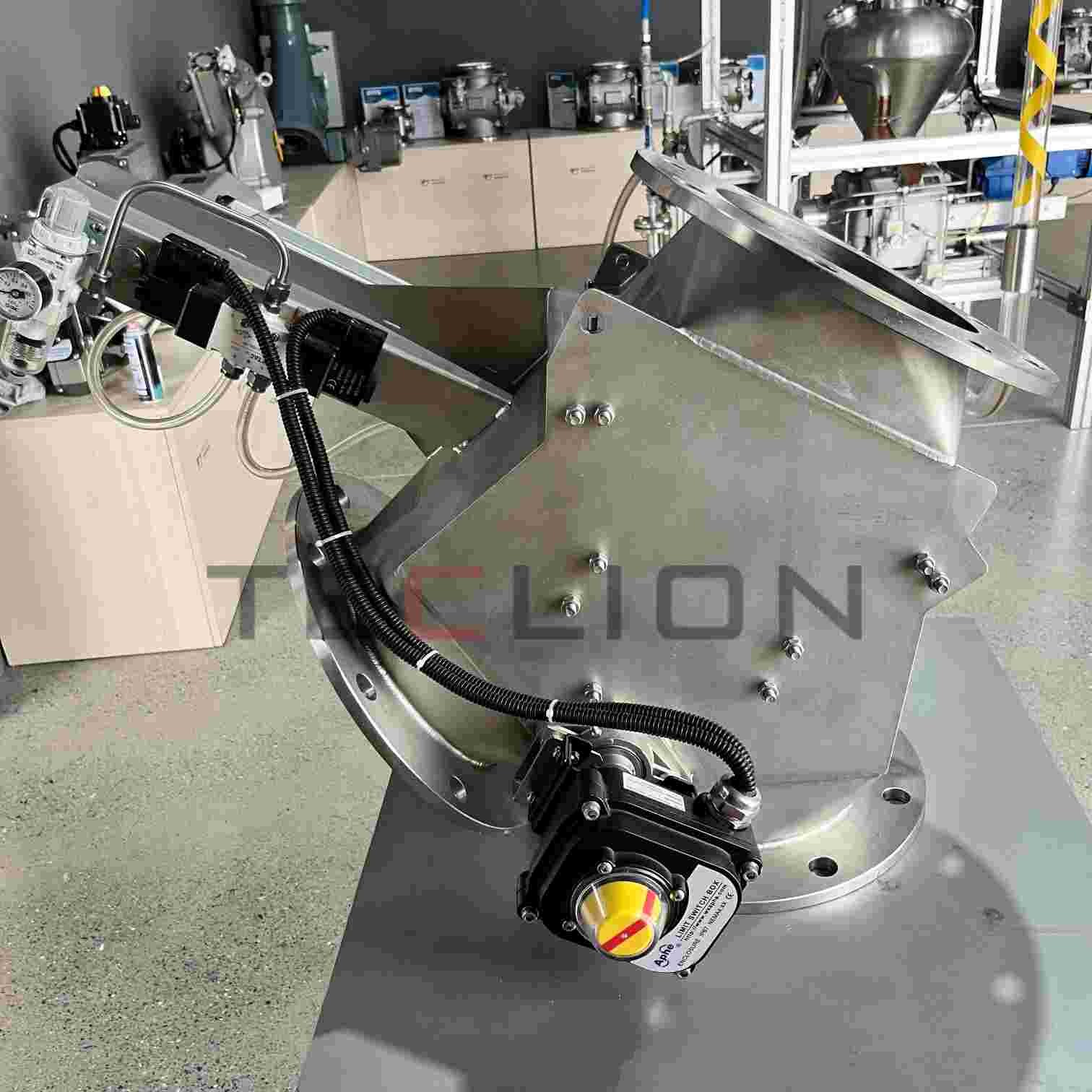

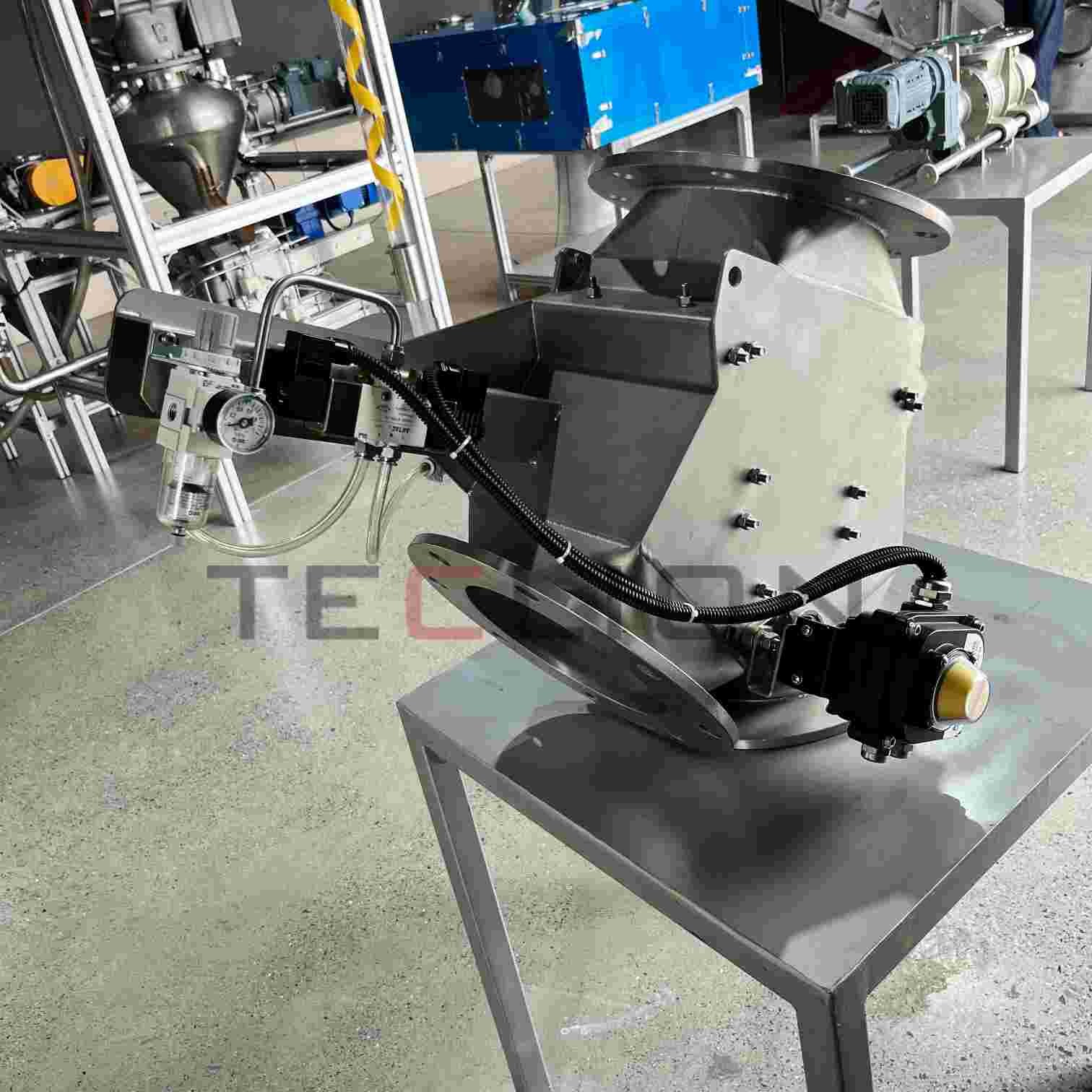

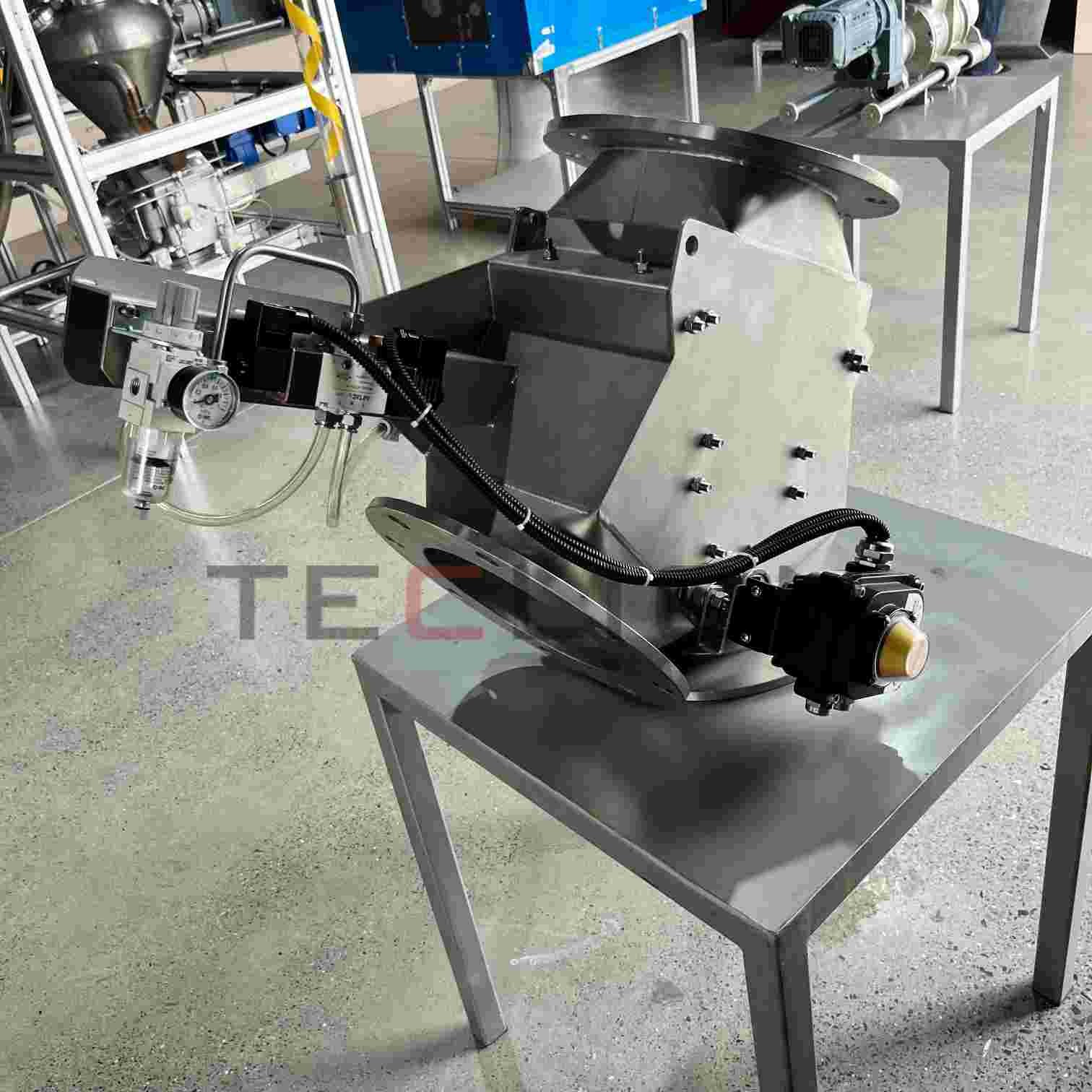

Innovative design! Swing plate gravity distribution valve - more precise powder conveying

Name: Innovative design Swing plate gravity distribution valve more precise powder conveying
Brand: TECLION
Price: 1 USD

Quality Innovative design! Swing plate gravity distribution valve - more precise powder conveying wholesale

Brand Name : TECLION

Model Number : DFV200

Certification : CE EAC ISO

Place of Origin : China,Anhui

MOQ : 1

Price : Get the Best Price

Payment Terms : T/T

Supply Ability : Usually every one sets for 35- 40 days

Delivery Time : 35 working days

Packaging Details : Professional export fumigation free wooden crate

Applicable Industries : Manufacturing Plant, Food & Beverage Factory, Farms, Other

Cylinder form : Double action

protection grade : IP55

Position switch form : SPDT

Flange standard : PN10

Color : Original color

Working Temperature : 120℃

Contact Now

Innovative design! Swing plate gravity distribution valve - more precise powder conveying

Product Description:

This directional valve is suitable for the working condition of gravity feeding under normal pressure, can switch with material, has no dead angle design, and is suitable for explosion-proof areas.

Product Features:

1)Precision cast shell

2)Smooth channel without undulations or dead corners

3)High load, rigid foot

4)Can be used at any position in dilute phase transportation pipelines

5)Flow direction indication is concise and clear

6)Ten thousand action tests, structurally reliable

Product Parameters:

No	Item	Note
1	Valve type	DFV200R
2	Size	DN100-300
3	pressure (Mpa)	ATM
4	Allow temperature usage	120℃
5	Materials of constructions	stainless steel or carbon steel
6	volume	4-12L
7	Applicable area	in Ex-zone

Innovative design! Swing plate gravity distribution valve - more precise powder conveying
