Conveyor Hygiene Sanitary Rotary Air Lock Feeder Powder Rotary Feeding Valve

Brand Name : TECLION

Model Number : RDP80

Certification : CE

Place of Origin : China Anhui

MOQ : 1

Price : Get the Best Price

Payment Terms : T/T

Supply Ability : Usually every one sets for 35 days

Delivery Time : 30 working days

Packaging Details : Professional export fumigation free wooden crate

Material : stainless steel

Valve Height : 203 mm

Size : DN80

Rotor volume : 0.25 liter

Bearing : external

Flange : Clamp and Optional

Temperature : below 120℃

Pressure : 1 barg

Contact Now

Conveyor hygiene grade powder medium rotary feeding valve

Product Description:

The valve body of this sanitary rotary feeder is made of a whole piece of stainless steel material. The outer surface and inner cavity of the valve are mirror polished to ensure smooth material transportation. At the same time, the material contact area is degreased to maintain the cleanliness of the valve body and reduce pollution to the conveying medium. The rotary valve can also be connected with simple and easy to remove clamps, and the compact structural design is convenient for installation. The inner cavity of the rotary valve can be sprayed with various options such as ceramic, tungsten carbide, etc. according to customer requirements or working conditions.

Product Features:

1) Gravity feeding work condition

2) Suitable temperature less than 120 ° C

3) Measurement unloading

4) Mirror polishing of inner and outer surfaces

5) Internal and external polishing 400#

6) Flange clamp connection

7) Smooth import and export without any dead corners

8) Can provide CE,EAC and ATEX certificate

Product Parameters:

No Item Note
1 Valve type Rotary valve
2 Pressure 1.0 barg
3 Height 203 millimeter
4 Temperature No more than 120 degrees
5 Flange PN 6 or Clamp
6 Gear box Helical gear, bevel gear, worm gear type

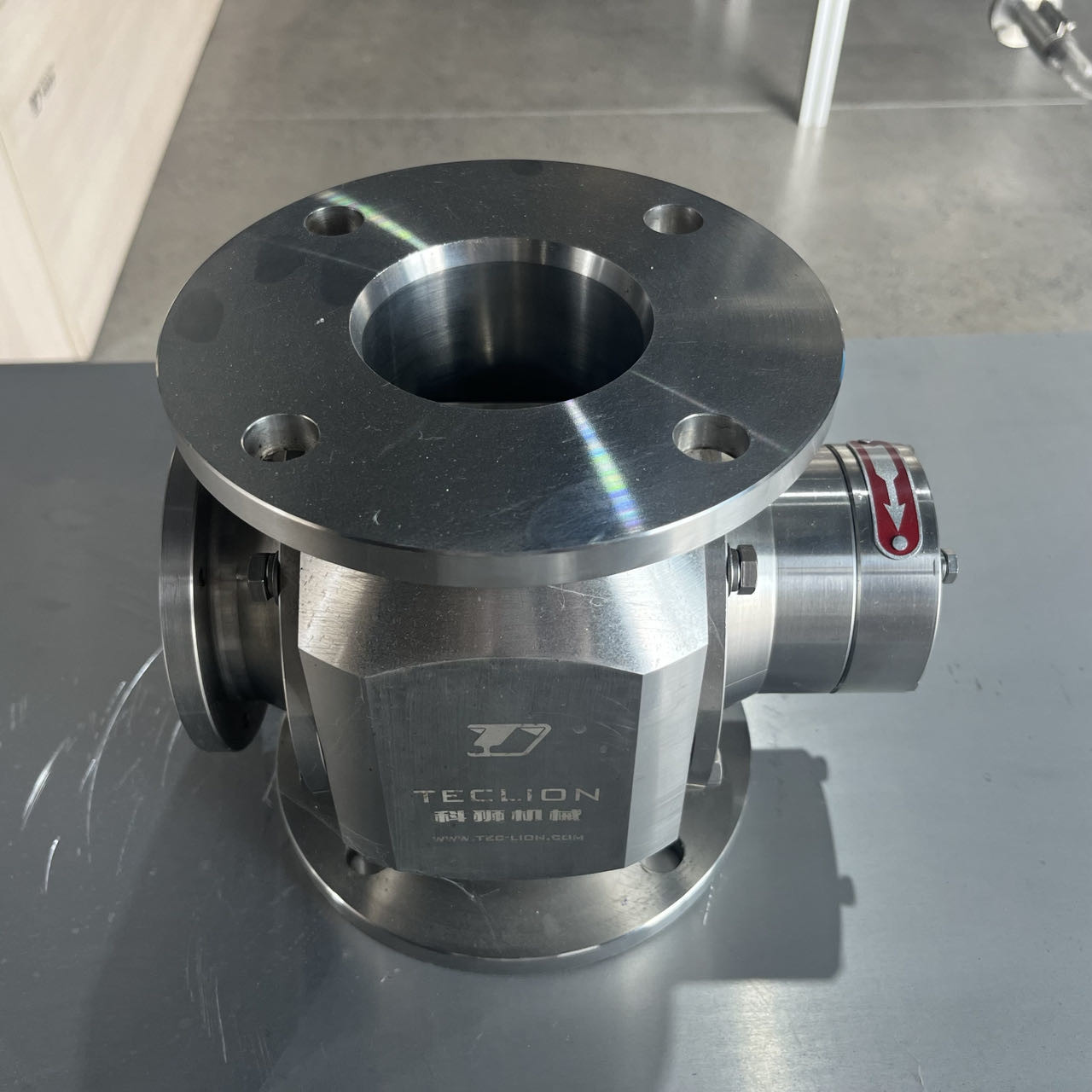

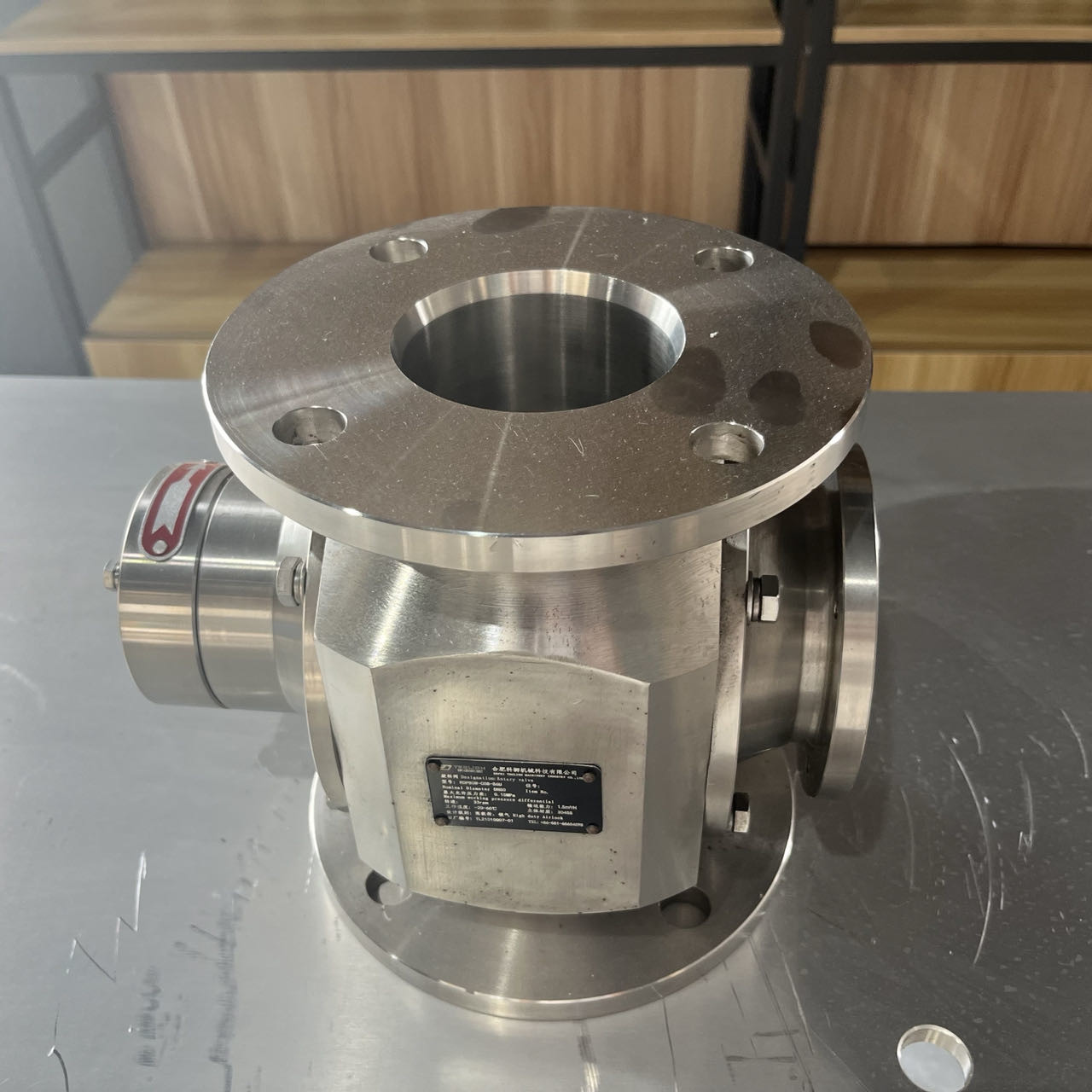

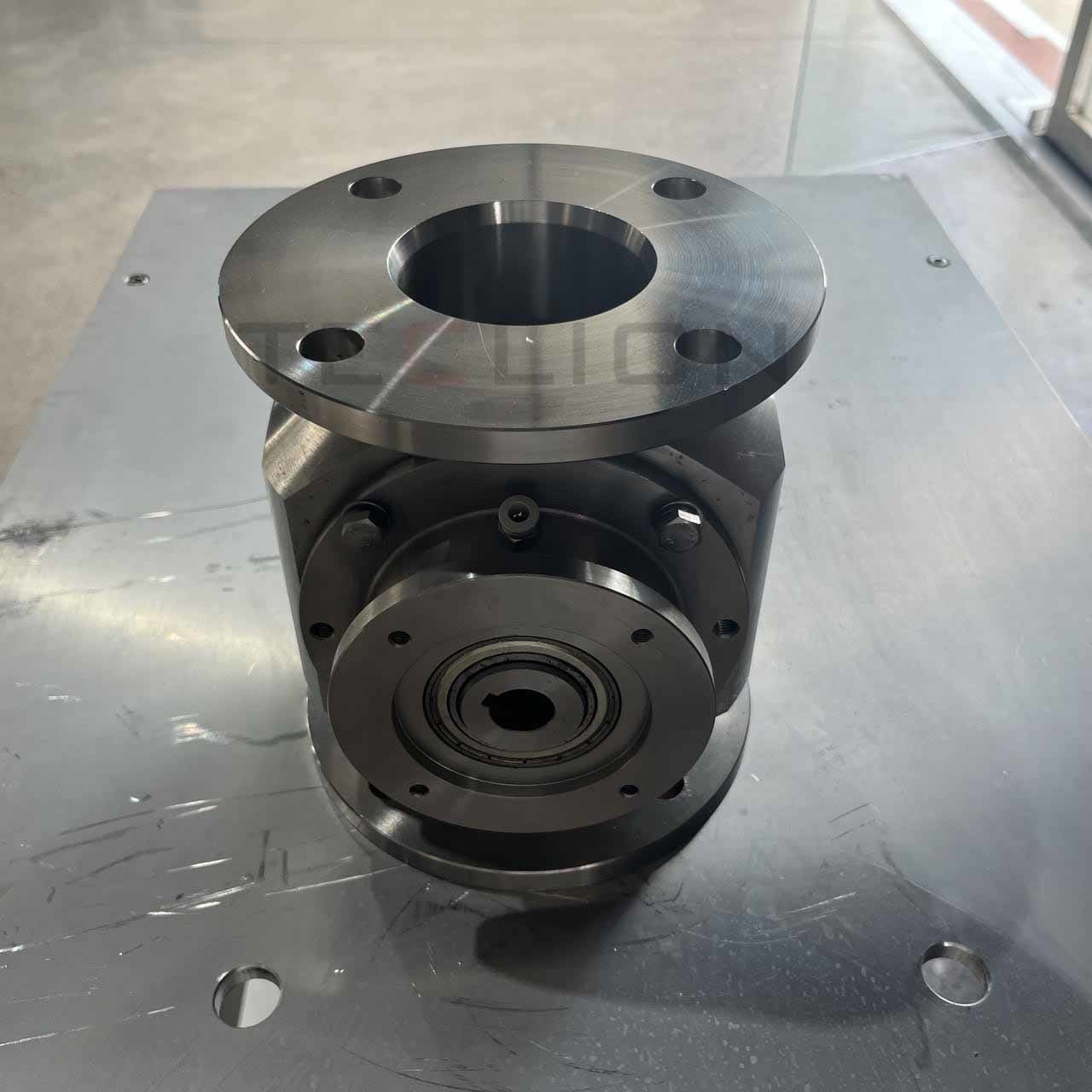

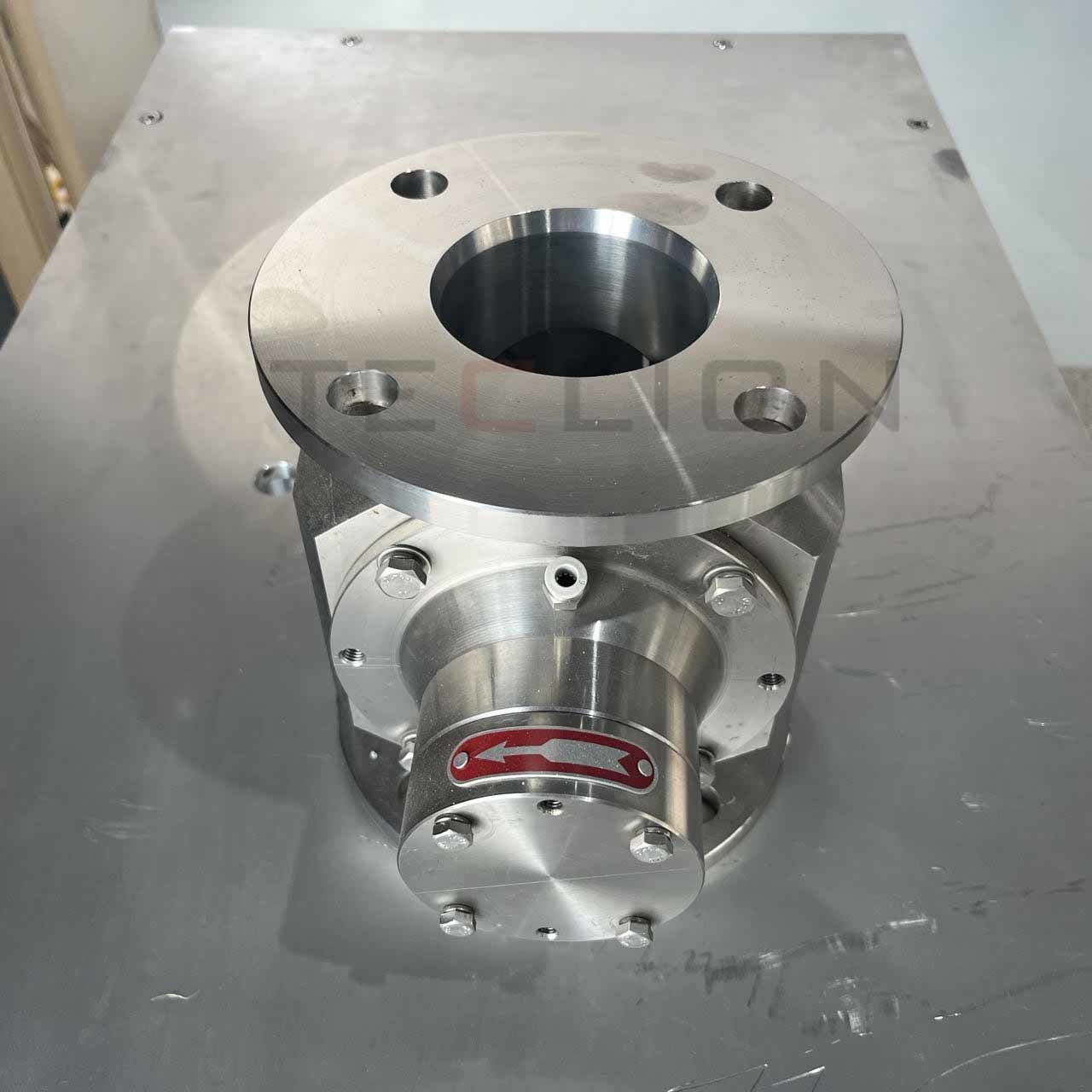

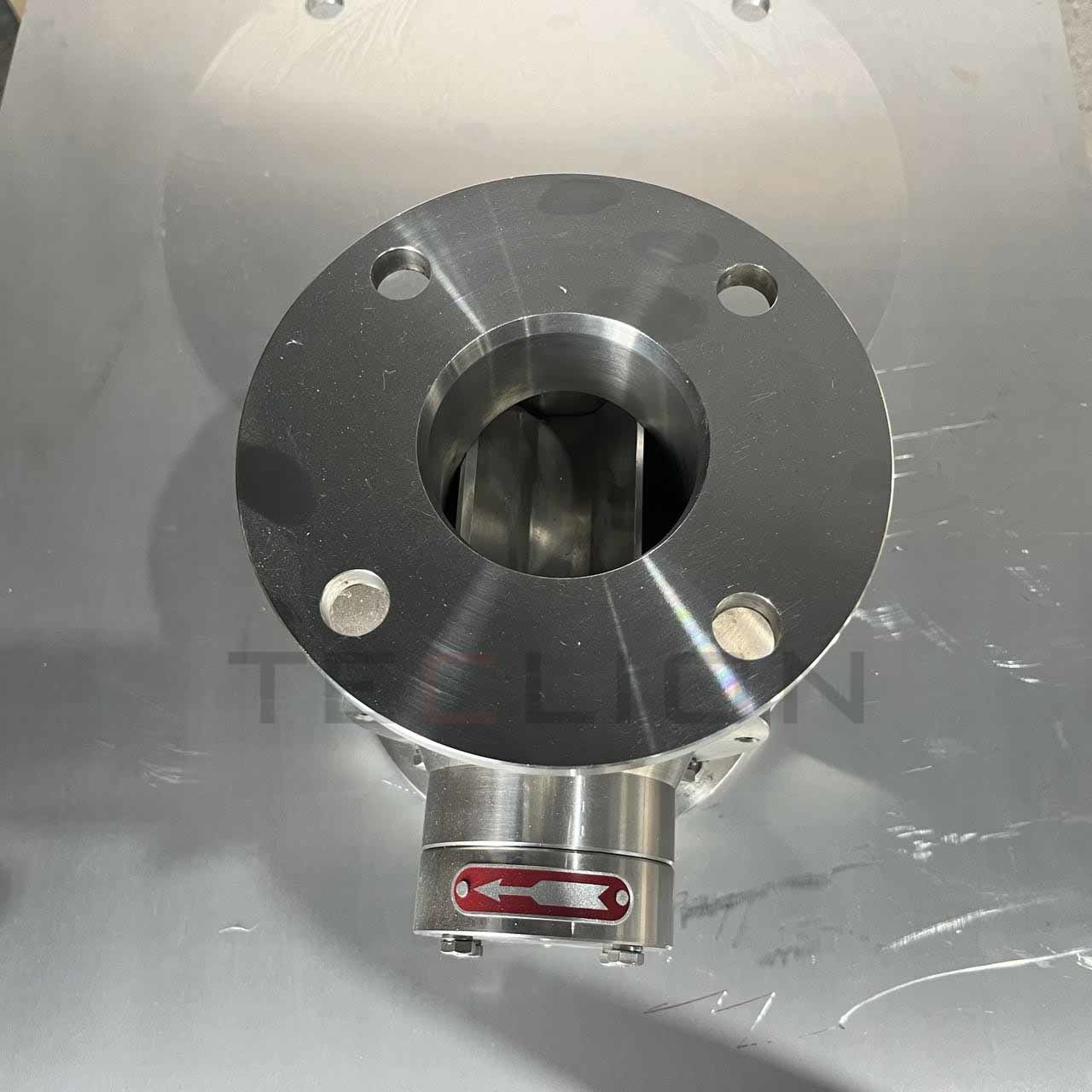

Product Pictures:

Conveyor Hygiene Sanitary Rotary Air Lock Feeder Powder Rotary Feeding Valve

Conveyor Hygiene Sanitary Rotary Air Lock Feeder Powder Rotary Feeding ValveConveyor Hygiene Sanitary Rotary Air Lock Feeder Powder Rotary Feeding ValveConveyor Hygiene Sanitary Rotary Air Lock Feeder Powder Rotary Feeding ValveConveyor Hygiene Sanitary Rotary Air Lock Feeder Powder Rotary Feeding Valve
