K-type directional valve for conveying various powders or granular materials

Name: Ktype directional valve for conveying various powders or granular materials
Brand: TECLION
Price: 1 USD

Quality K-type directional valve for conveying various powders or granular materials wholesale

Brand Name : TECLION

Model Number : DK80

Certification : CC CE

Place of Origin : China,Anhui

MOQ : 1

Price : Get the Best Price

Payment Terms : T/T

Supply Ability : Usually every one sets for 35- 40 days

Delivery Time : 35 working days

name : K-type single channel plunger Diverter Valve

material : stainless steel,carbon steel

weight : 34kg

height : 42cm

temperature : -20-120℃

Flange pressure rating : PN10,ANSI 150lbs

colour : Original color

Usage : Usable in Ex-zone

Contact Now

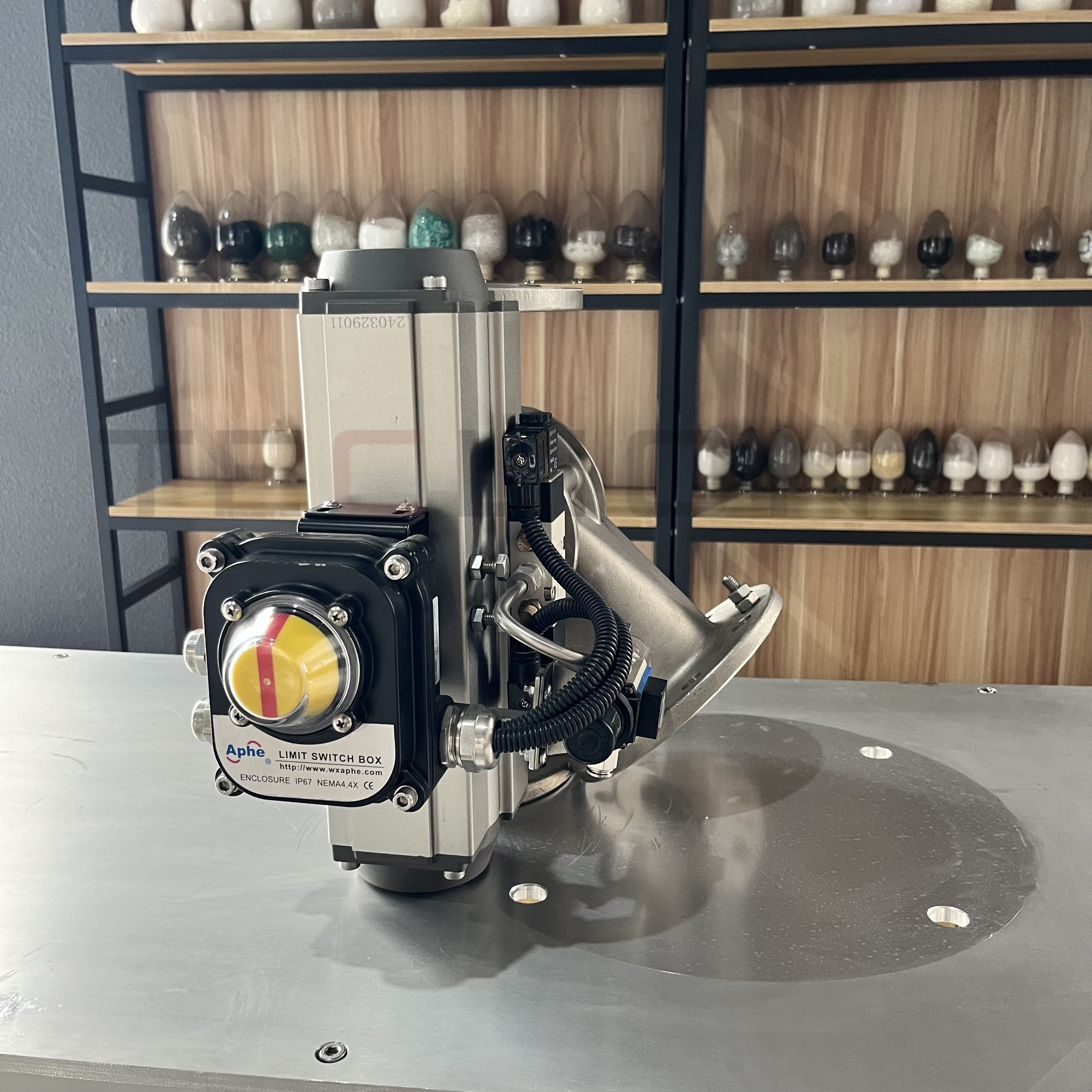

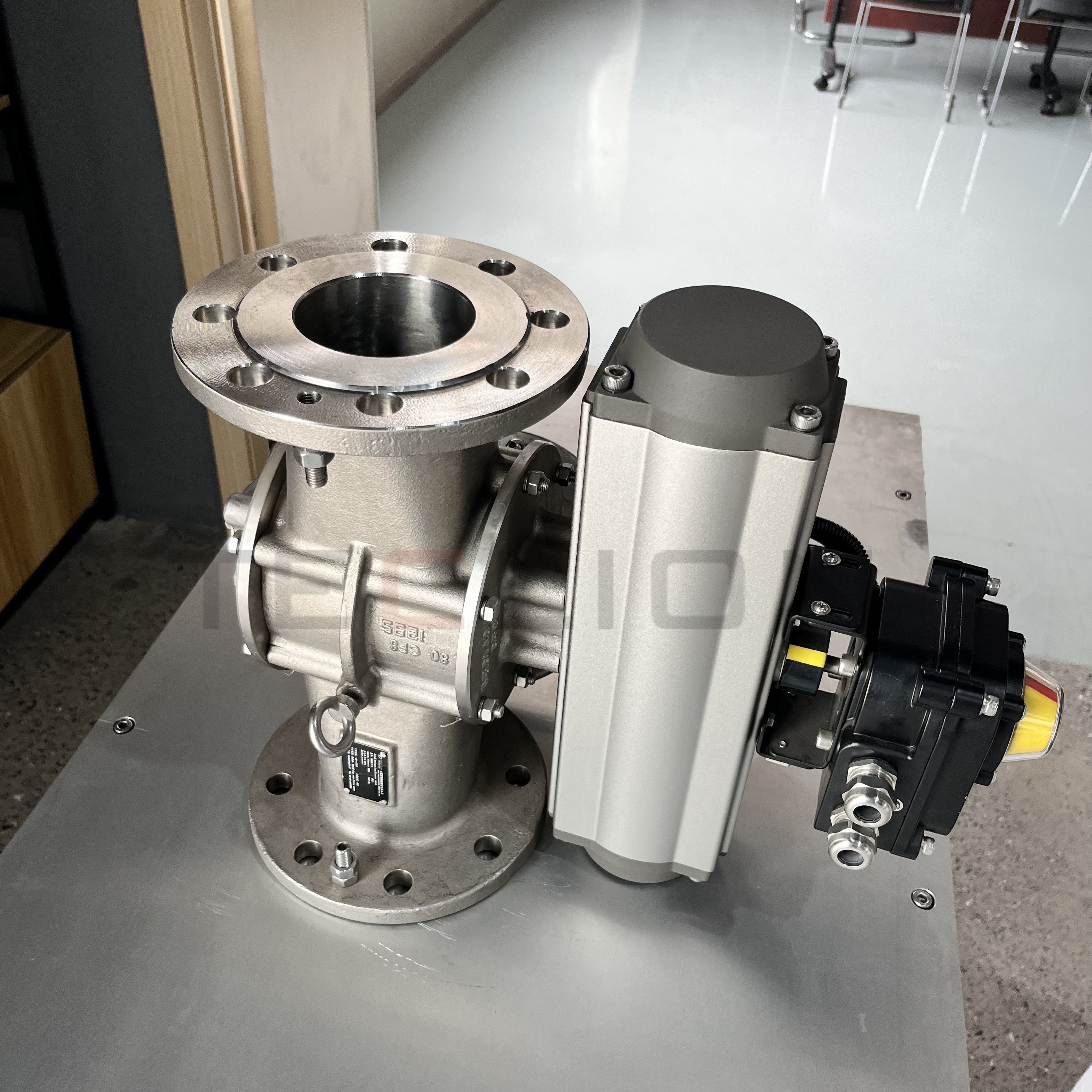

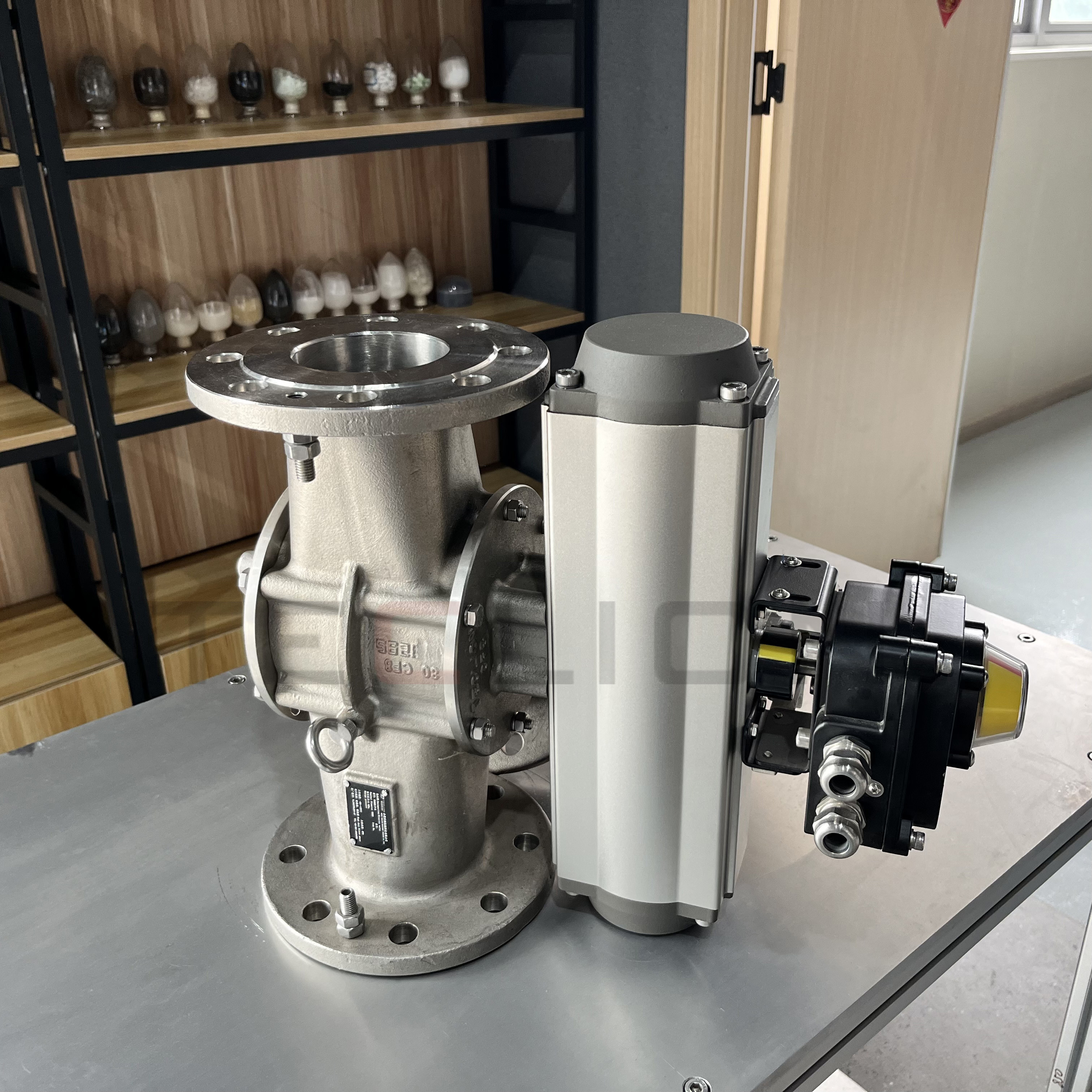

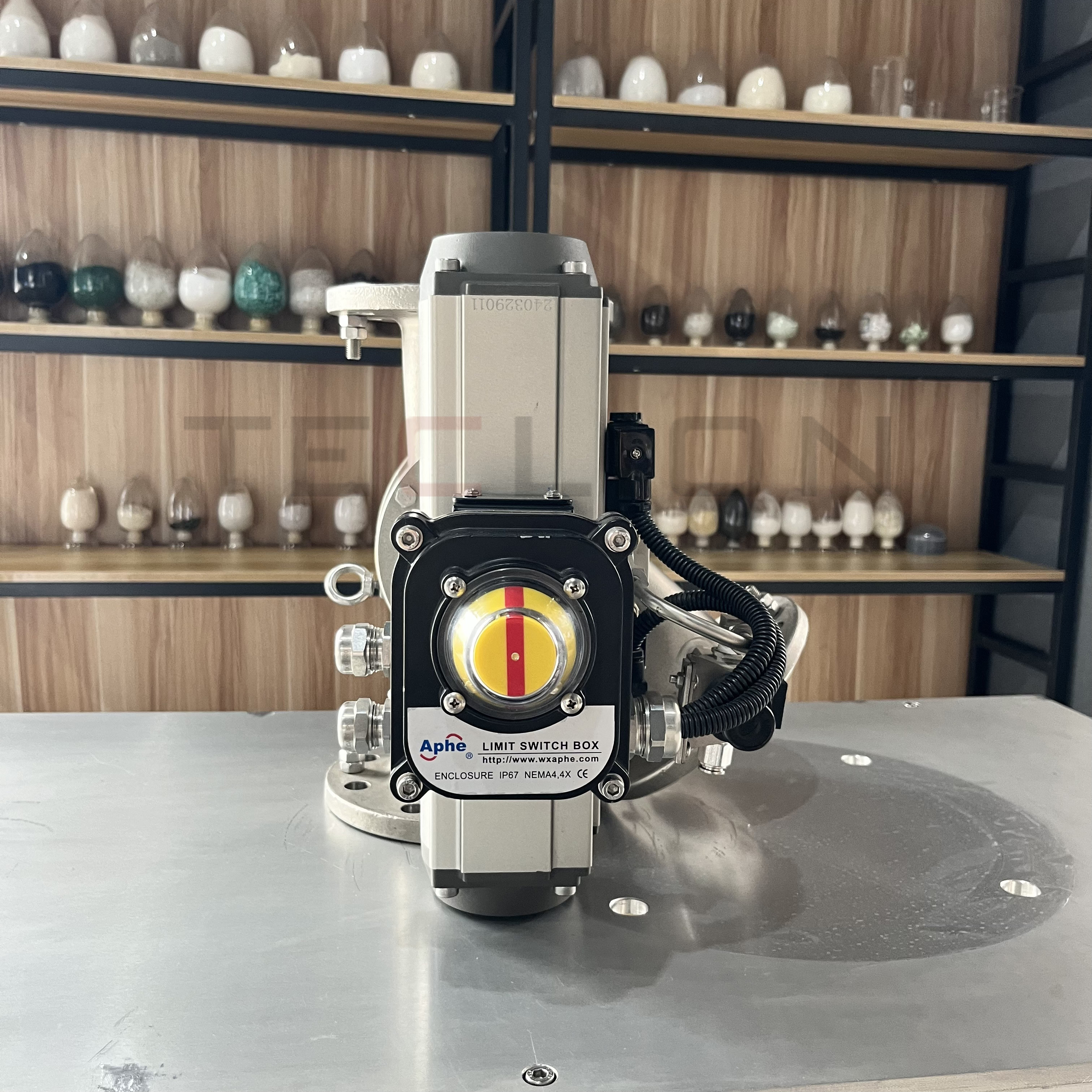

K-type Diverter Valve for conveying various powders or granular materials

Product Description:

K-type directional valve is specialized for switching material flow direction in gravity flow or pneumatic conveying, continuously conveying materials, and is suitable for pneumatic conveying systems. Do not expect to use it to maintain pressure on the conveying pipeline. The factory can produce a capacity of 2L-14L, which can be customized to meet various needs.

Features:

1) 45 ° angle valve core seal

2) Can be paired with two types of sealing valve cores to cope with different working conditions

3) Optional electric heat tracing

4) Ceramic and tungsten carbide can be sprayed inside the cavity

5) Mirror polishing and degreasing treatment are available

Technical parameters:

Product Name	K-type Diverter Valve
Material	Stainless steel carbon steel
Flange pressure rating	PN10,ANSl 150lbs
structure	Single channel plunger type
Temperature	less than or equal 120℃
volume	2L-14L
