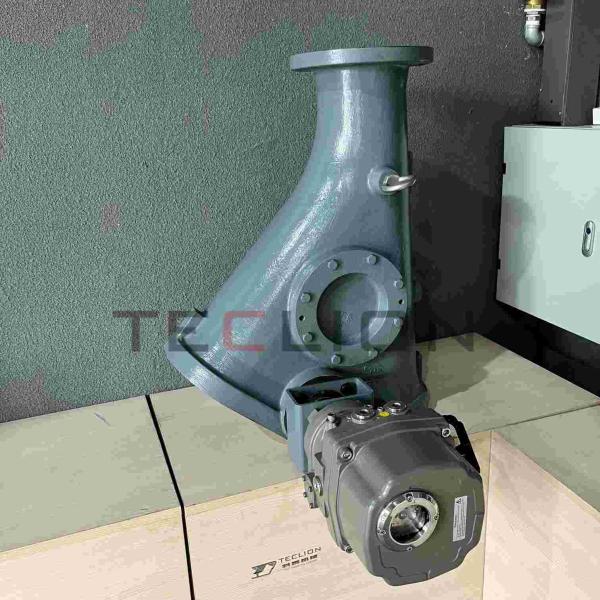

Cast iron material pendulum type Diverter Valve without drive

Brand Name : TECLION

Model Number : DP150

Certification : CC CE

Place of Origin : China,Anhui

MOQ : 1

Price : Get the Best Price

Payment Terms : T/T

Supply Ability : Usually every one sets for 35- 40 days

Delivery Time : 35 working days

Packaging Details : Professional export fumigation free wooden crate

material : Cast iron

Temperature : -50-250℃

pressure : 6.0barg

Flange pressure rating : PN10,ANSI 150lbs

drive : Without actuator

Applicable area : Explosion proof area

industry : Chemical minerals

Contact Now

Cast iron material pendulum type Diverter Valve without drive

Product Description:

The material of the pendulum type directional valve is carbon steel, and the elbow tube is wear-resistant, suitable for high abrasive materials. The flow indication is concise and clear. The sealing ring can be replaced online. Suitable for dense or dilute phase pneumatic conveying.

Product Features:

1) The bearing adopts solid embedded self-lubricating technology, and does not require lubrication during use

2) The pendulum series generally has a factory reversing speed of more than 8s per change

3) By connecting three flanges to the conveying pipeline, it can be firmly secured Supported by the entire valve

4) The pendulum is supported by bearings

5) Replace the sealing ring online

Product Parameters:

No Item Note
1 Valve type Pendulum diverter valve for powders and granular products
2 Size DN50-DN400
3 pressure 6.0barg
4 Temperature usage ℃ -50-250℃
5 Material Stainless steel carbon steel
6 height 79cm
7 Outer diameter of flange 26cm
8 weight 156.7kg

Cast iron material pendulum type Diverter Valve without driveCast iron material pendulum type Diverter Valve without driveCast iron material pendulum type Diverter Valve without driveCast iron material pendulum type Diverter Valve without drive
